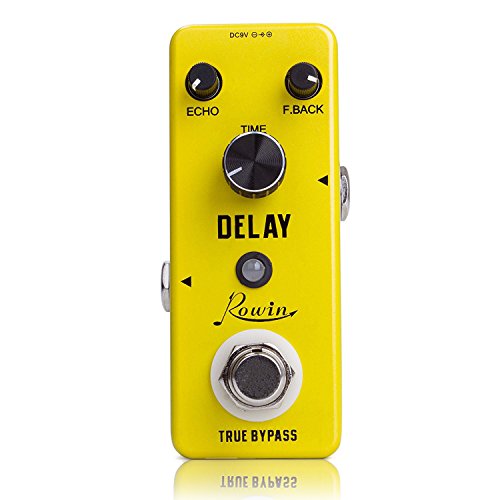

Rowin Analog Vintage Delay Guitar Effect Pedal

Description:
Organic sounding analog delay pedal combining the sounds of classic tape / echo delay with modern delay design to produce an extremely versatile sounding delay pedal. The LEF-314 has an adjustable delay time ranging from 20ms right up to 620ms, useful for a wide range of music styles. The echo control adjusts the amount length of time the delayed sound will ring out for, while the feedback knobs gives control over the intensity of the delayed sound. Being a truly analog delay, with the feedback right up, the LEF-314 is capable of producing a positive feedback loop, great for ending a show!

Features
1.Power Supply：9V DC (Negative in the center).
2.Echo Knob：Echo to adjust the delay of the level.
3.F. back Knob：F. back to adjust the delay of the feedback.
4.Time Knob：Controls delay time for 25ms-600ms.
5.Input & Output Jack：Analogy though 1/4” mono audio jack.
6.LED Light：LED indicator shows the working state.
7.Full metal shell：High quality zinc alloy classic, stable and strong.
8.True Bypass：True bypass for zero tone coloration.

Specifications:
Input Impedance:1m Ohms
Output Impedance:470k Ohms
Power Supply: DC 9V (Plug polarity is Positive on the barrel and negative in the center)
Working Current: 42mA

Package included:
1 x Rowin delay guitar effect pedal
1 x User’s Manual
1 x gift box

Product Features

  • 【ANALOG DELAY EFFECTS】Warm, clean and smooth vintage delay sound
  • 【3 FUNCTION KNOB】ECHO is mix, TIME for 20-620ms delays, FEEDBACK is the repetions
  • 【SOLID CONSTRUCTION】Made of high-quality zinc alloy, durable and sturdy.
  • 【TRUE BYPASS】True bypass provide transparent tone.LED indicator shows working state
  • 【MINI SIZE】Small and exquisite,can save a lot of space on pedal board
Analog Delay Effect Guitar Pedal Rowin Vintage
