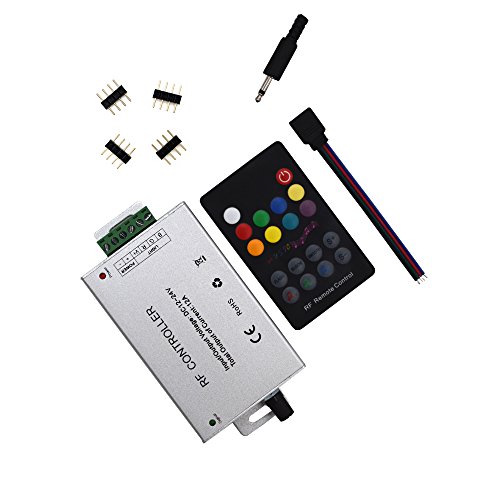

RF 18 Key Music Controller (12A) For 5050 3528 LED Strip Module&RF Remote 12~24V

Product Description :
18-key RF music controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. As the Ⅱgeneration product, it achieve the perfect music control effect and user experience, basic on the audio analysis technology and more user-friendly remote control design. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Specifications Working temperature:-20-60℃ Supply voltage:DC5V, 12V~24V
dimension:L61*W35*H22 mm
Packing size:L106*W64*H56 mm
Net weight:60g Gross weight:85g
Static power consumption:

Product Features

• RF TECHNOLOGY: This device adopts the advanced micro control unit and Radio Frequency technology. The signal can penetrate objects of certain thickness. The controller features no directionality or line of sight to receive signal from the remote.
• HIGH COMPATIBILITY: Power supply voltage DC 12-24V, 3 channels, max output current 12A. Capable of running 10m LED strip with 60pcs SMD 5050 LEDs per meter or 20m LED strip with 30pcs SMD 5050 LEDs per meter.
• 15 MODES: Including 9 static colors, 3 kinds of dynamic changes and 3 music modes. In music modes, colors will automatically change/dance to the music beat. Ideal for DJs, Musicians, Parties and More.
• ADJUSTABLE MUSIC INDUCTION SENSITIVITY: This controller can be music/sound inducted by both the “Mic” interface and the “Audio” interface. The Sensitivity of Music/Sound Induction is adjustable by rotating the black Sensitivity Knob on the controller. Also, if you want the music induction to be MORE/LESS sensitive, please long press the “S+”/”S-” buttons on the remote after you’ve entered the music mode.
• PWM TECHNOLOGY: Adopts advanced PWM technology, capable of controlling various kinds of LED appliances that has the RGB coloring changing feature. For example: RGB 5050 3528 LED strip, automotive LED lighting, LED modules, LED strings and so on.
