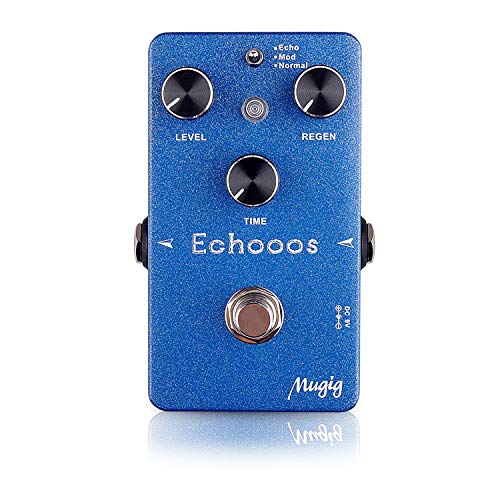

Guitar Effect Pedal, Mugig Electric Guitar Echo Delay Effects, True Bypass, Adjustable LEVEL/REGEN/TIME Knob (Deep Blue)
Feature:
1. Power Supply: 9V DC
2. Delay Time: 0 – 838 ms
3. Three Modes: Normal Mode, Mod Mode, Echo Mode
4. Level Knob : Adjust the level of the delay effects.
5.Regen Knob :Adjust the feedback of the delay effects.
6.Time Knob :Adjust the delay time.
7.Output Jack: 1/4” mono audio jack, for signal output.
8.Input Jack: 1/4” mono audio jack for connecting guitar.
9.True Bypass Footswitch: Push down the footswitch to switch between effects and bypass status.
10. Input impedance: 470K Ohms
11. Output impedance: 100 Ohms
12. Working current: 68 mA
13.Dimensions: 94mm (D)*42mm (W)*48mm (H)
14.Weight: 135g
Tips:
1.Do not use the pedal in high temperature, high humidity, or subzero environments and in the direct sunlight.
2.Please do not dissemble the pedal by yourself.
3.Please keep the manual for future reference.
4.Please make sure the the diameter for power plug using is 5.5, and the power for the adapter is OUT-DC 9V- 500mA 4.5W. The misusage for power adapter usually can lead to a loud buzzing sound.
Package Included:
1 x Mugig Echooos Delay Guitar Effect Pedal
1 x Manual
Product Features
- Delay Effect Pedal: Mixs signals in short delay to make a Echo effect.
- PT2399 Chip: Low noise, low power consumption.
- True Bypass: Can turn off effects and let signals pass without loss.
- Three Knobs: Adjustable LEVEL/REGEN/TIME control.
- Aluminum Alloy Material, convenient and durable. 6-months warranty.
Loading...
OK, I guess. (revised. Original 2 star review: Sounds good for the money. However, it is a bit noisier than other pedals. I would not recommend it for recording. Also, mine came with a pretty hard switch. Loud audible “crack” when you switch it on, then that crack delays and echoes as the effect does what it’s supposed to do. Buy a Donner Wave nano pedal if your looking for decent delay pedal on a budget.Revised Review:First of all, Mugig has outstanding customer service. They…
Be aware of the limitations, then buy it anyway. Update: Mugig stands behind their products and helped greatly. Again the only real problem I’ve had with the pedal is the switch.As soon as I plugged the pedal in I, like some others, got absolutely no sound. Eventually, as if it was a tube amp warming up, the pedal started working. Then the switch pop started. I’ve read other people have this problem as well. The switch pops every time the pedal is engaged or disengaged, and depending on the settings of the pedal it might just…
