DROK Mini Ampli Board 6V to 18V Portable Stereo Amplifier Digital Amp Module Audio Amplify Dual Channel 15W+15W
TDA7297B Parameters:
Voltage:DC 9V to 18V(suggest you to use 12V DC in at lease 2A)
Power: 15W+15W
Peak power: 30W+30W
Output anti-resistance: 4 to 8 ohm
Features:
1.Adopts TDA7297 dual-channel amplifier chip; DC power supply and can use 12V battery as direct power supply
2.With potentiometer knob and heat sink on the board and can be used simply by connecting its wires
3.Working efficiency as high as 90%, quite enery-saving; the amplifier can play continuously for 5 hours with 12V motor battery as power supply
4.Has wiring terminals(please use screwdriver) and requires no electric iron for fast wiring connection
5.You can use this amp board for DIY speaker, easy and convenient; reasonable circuit design; has no impact sound and static noise
6.Its PCB circuit module adopts 1.6mm-thick FR-4 high-quality fiberglass;there are fixing holes if you want to use larger heat sink
Power supply:
Input voltage: AC 100 to 240V 50/60Hz
Output voltage: DC 12V
Output current: 2A Max
Voltage accuracy: +/- 5%(in empty load)
Power supply polarity: inside is the positive and outside is negative
Speaker Parameters:
Outer diameter: 78mm
Speaker height: 52mm
Anti-resistance: 4Ω
Diagonal screw hole distance: 83mm
Sensitivity: 90dB
Effective frequency: 108Hz to 20KHz
Hole diameter: 71mm

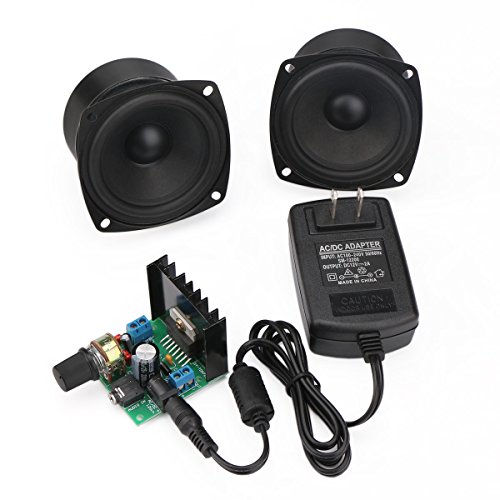

Package include:
1PCS TDA7297B module
1PCS Power supply
2PCS Speakers
Product Features
- Blue LED indicator which lights on when the amp module power on
- With potentiometer knob, hence easy and convenient for adjustment
- Large capacitance of 2200UF and has heat sink
- 2.0 dual-channel power output of 15W+15W; can be connected to 4 to 8Ω, 10 to 50W speaker
Bought 2 years ago, used just about every day – works fine. Don’t expect eardrum shattering volume. I bought this in March 2016, and finally got around to reviewing it.So it has been nearly 2 years now (Feb 2018), and I have this little guy driving a couple of bookshelf speakers, driven by my iPhone 3GS (yes, you read that right..3GS from 2009), streaming with Tune In. I only use the 3GS for Tune In. I have a benchtop 12V power supply supplying power to both the amp and a 12V to USB for the phone.Details: I checked the frequency response of this little PA with a PC…
Five Stars
Will produce clean strong bass if Passive crossover is used …
