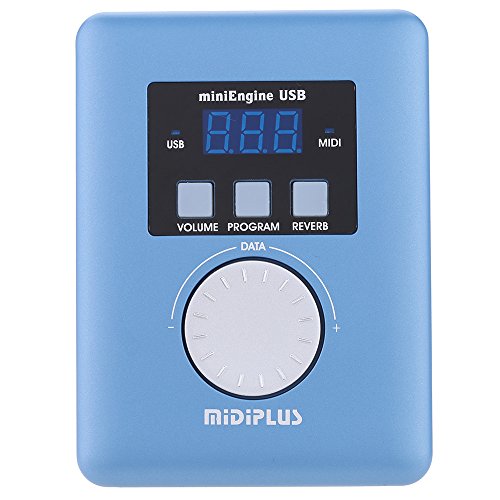

ammoon Midiplus MiniEngine USB MIDI Sound Module General MIDI Generator
Features:
Provides 128 standard GM tones, up to 64 polyphony output.
16 bit sampling accuracy of the data, 48kHz sampling frequency, 24dB sound digital filtering.
Data rotary knob to adjust Volume, Program, Reverb effects.
LED shows the value of the current volume, program, reverb.
Support all the MIDI devices that have MIDI output or USB output.
Either MIDI or USB connection can be manifested no delay.
Support MIDI IN and USB HOST working simultaneously.
Built-in 2500mAh rechargeable lithium battery can power your MIDI devices.
3.5mm headphone output interface: Connect headphones or other output devices.
Specifications:
Color: Blue
Material: Aluminium alloy
Maximun polyphony: 64
Tone: 128 standard GM
Power source: Micro-USB
Item size: 10.5 * 7.5 * 2cm / 4.1 * 3 * 0.8in
Item weight: 188g / 6.7oz
Package size: 18 * 11 * 5cm / 7.1 * 4.3 * 2in
Package weight: 296g / 10.5oz
Package List:
1 * MiniEngine USB
1 * Micro-USB cable
1 * 3.5mm TS to MIDI cable
1 * User manual(English & Chinese)
Product Features
- Provides 128 standard GM tones, up to 64 polyphony output.
- 16 bit sampling accuracy of the data, 48kHz sampling frequency, 24dB sound digital filtering.
- Data rotary knob to adjust Volume, Program, Reverb effects.
- Support all the MIDI devices that have MIDI output or USB output.
- Support MIDI IN and USB HOST working simultaneously.
Loading...
Works with Yamaha YPG-535 Comes with:- User manual- GM patch list card- MIDI to jack cable (to receive midi cable data)- MicroUSB to USB (to charge device)- Device itself.To work with a popular Yamaha YPG-535 keyboard, you need to buy an old fashioned USB cable (not mini or micro, just regular male to female USB cable, like a USB1.0 cable).As you may be aware the YPG-535 does not have MIDI connectors, but it can be sent over USB.Connect the included microUSB cable to…
Originally nothing that I tried worked. The instructions are useless, they only point out what the MIDIEngine has labeled on the product.How to get the Sound to work?How to set it up:1) MIDI-Host-USB-Out to Yamaha-Host-USB-AB(printer cable)-In.2) MIDI headphones-out to Yamaha-AUX-in.3) The Yahama P255 has a USB on the front right panel, you can use this for charging the MIDIEngine.At first I thought it was plug and play, then nothing. Then I…
This works great for me. I was cobbling together a home-brew solution. While I did get that working, it was a mess of jumpers and components. This does the same job at a rock-bottom price.Does it sound as good as modules costing hundreds of dollars more? Of course it doesn’t. But it sounds fine, especially for the price.I’m using it with an old M-Audio keyboard. Works fine through the MIDI connection, with an external power supply for the keyboard. Even better though is…
