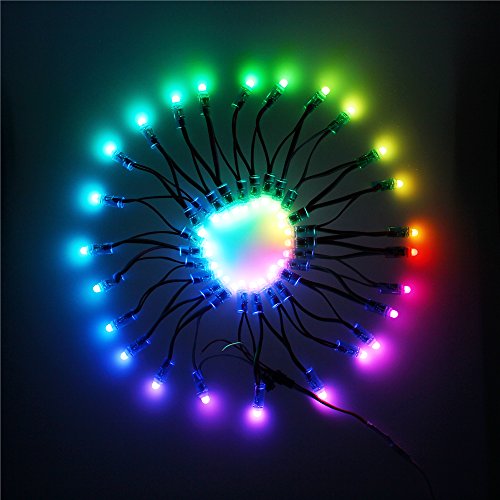

ALITOVE WS2811 RGB LED Pixels Light Individually Addressable 12mm Diffused Digital Full Color LED Pixel Module Strand Light 12V 50 pcs for LED Screen Wall Advertising Sign Board IP68 Waterproof
Parameter
Model: WS2811 LED pixel
Light source: F8RGB*1
IC Model: WS2811 IC
Quantity: 50 LEDs / strand
LED Shape: Bullet shape
Color: full color, 24-bit
Gray level: 256
Size: Please refer to the picture
Drill hole diameter:12mm
Length: 3.5m/strand
Operating voltage: DC 12V
Power: 0.6W/LED (30W/Strand)
Waterproof: IP68 waterproof
Connection: Red: +12V; White: DATA; Blue: GND
Kindly note
1) It comes without power supply and controller. You’ll need a controller such as an Arduino to use them.
2) The work voltage of the LED string must be 12V DC. Otherwise, it will be burnt out. 12V 3A supply can drive one strand (50 pieces).
3) There are small arrows on circuit board to show the direction of the data flow. This will help you confirm the input and output end.
Package:
50pcs WS2811 LED pixels light
To let it work, you may need these
12V 5A Power supply:
http://a.co/9Ntl9xV
SP105E Bluetooth Magic LED Controller:
http://a.co/3FaBmvq
SP103E Mini Wireless RF Remote Controller:
http://a.co/aSJuPpH
T1000S LED Controller:
http://a.co/91MH14K
Arduino:
http://a.co/5NZCM5S
Raspberry Pi:
http://a.co/1JGpeUB
Black wire LED pixels:
http://a.co/hmxInud
Product Features
- Individually Addressable. Each LED can have its own color and brightness. You can control each LED individually and set it to any color or animation you want.
- It can be programmed with Arduino, Raspberry Pi, FadeCandy, T1000S etc. It can also be controlled by SP105E, SP103E, HC008 and other pre-programmed WS2811 controllers.
- IP68 waterproof. Each RGB LED and controller chip is sealed in silicone. They are weatherproof and rugged. You can put them outdoor, even underwater.
- Each strand has two 3-pin JST SM connectors so you can connect multiple strands in a row, just watch for how much current they want. Each pixel can be cut off. So you can shorten or extend the distance between two pixels.
- They’re typically used to make outdoor advertising signs, led screen, led wall, advertising board and widely applied to hotel, KTV, bars, wedding, party atmosphere lighting.
Loading...
This was a little tricky. I couldn’t get it … This was a little tricky. I couldn’t get it to work for a long time. Here are the things that you might need to know:1. This needs a robust power supply. Make sure your voltage matches but ALSO your amps. You need 200-300ma per pixel, so 50 pixels=30amps.2. Use “WS2811_400” rather than “WS2811” in your Arduino code.3. My first pixel was busted. I had to cut it off before anything would work. I might have zapped it accidentally–be attentive to…
Great lights at a reasonable price Works great! I’m controlling these with a FadeCandy connected to a Raspberry Pi.Red is power, blue is ground, and white is data. The only tricky thing is to make sure you’re sending the data on the correct end of the string. You should connect the data to the female JST SM connector (see photo). The male connector on the other end is only used if you’re chaining strings together.The power wire is 12V or 5V, depending on the version you bought, but the data wire is…
